Shielded Woofers from Chokes Unlimited
Contact Information
GW205S Shielded Magnet Woofer
With Bucking Magnet and Can
5.25" Poly Laminated Paper Cone
16 Ounce Shielded Magnet
1" Aluminum Voice Coil
Pressed Steel Frame
Foam Edge
62-9000 Hz
70 Watts RMS
Speaker Physical Characteristics
Overall Diameter = 5.25" (133mm)
Cut-out Diameter = 4 7/8" (124mm)
Mounting Depth = 3 1/16" (78mm)
Diagonal Mounting Hole Dimension (center to center) = 5 3/8" (137mm)
GW205/4S
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.6 Ohms
Fs
83.1 Hz
Qms
3.182
Qes
 0.872
Qts
0.684
Vas
5.3 Ltr
Sens
90.7 dB
GW205/S Shielded Woofer
GW205/8S
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.1 Ohms
Fs
86.1 Hz
Qms
3.175
Qes
 1.100
Qts
0.817
Vas
5.0 Ltr
Sens
87.0 dB

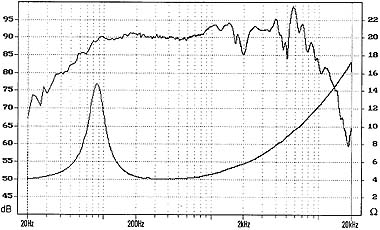

SPL Graph for GW205/4S
GW205/4S

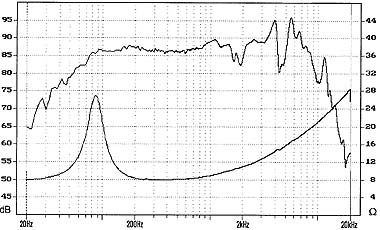

SPL Graph for GW205/8S
GW205/8S
Pricing
Part No.
Each
Case of 12
GW205/4S
$14.30
$10.50 each



Pricing
Part No.
Each
Case of 12
GW205/8S
$14.30
$10.50 each
