10 inch woofer from Chokes Unlimited
Contact Information
GW210
10" Poly Laminated Paper Cone Woofer
1.5" Aluminum Voice Coil
Pressed Steel Frame
Foam Surround
Vented Pole Piece
20 Ounce Magnet
Bumper Plate
40-5000 Hz
110 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 10" (254mm)
Magnet Diameter = 4" (102mm)
Cut-out Diameter = 9¼" (235mm)
Mounting Depth = 4" (102mm)
Diagonal Mounting Hole Dimension (center to center) = 9 5/8" (245mm)

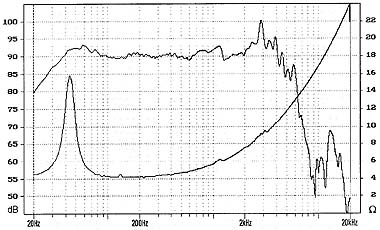

GW210/4
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.8 Ohms
Fs
41.8 Hz
Qms
5.535
 Qes
 1.322
Qts
1.067
Vas
64.2 Ltr
Sens
90.6 dB
GW210 10 inch woofer from Chokes Unlimited

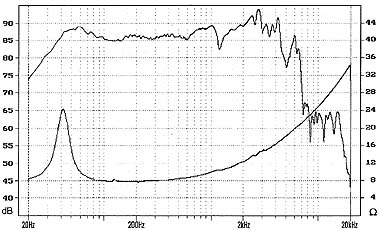

GW210/8
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.1 Ohms
Fs
41.0 Hz
Qms
4.586
 Qes
 1.605
Qts
1.189
Vas
59.7 Ltr
Sens
86.4 dB

GW210/4

GW210/8
Pricing
Part No.
Each
Case of 6
GW210/4
$21.45
$19.00 each
Pricing
Part No.
Each
Case of 6
GW210/8
$21.45
$19.00 each
