GW408D
8" Dual Voice Coil Woofer
1.5" Aluminum Dual 8 ohm Voice Coils
Poly Laminated Paper Cone
Pressed Steel Frame
Foam Edge
Vented Pole Piece
Bumper Plate
20 oz Magnet
44-3000 Hz
100 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 8" (203mm)
Magnet Diameter = 3 15/16" (100mm)
Cut-out Diameter = 7¼" (184mm)
Mounting Depth = 3¼" (83mm)
Diagonal Mounting Hole Dimension (center to center) = 7 9/16" (192mm)
VC's in Parallel
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.7 Ohms
Fs
51.2 Hz
Qms
4.458
Qes
 0.750
Qts
0.642
Vas
20.8 Ltr
Sens
90.8 dB
VC's in Series
T/S Parameters
Symbol
Value
Z
16 ohms
Re
14.8 Ohms
Fs
51.2 Hz
Qms
4.458
Qes
 0.750
Qts
0.642
Vas
20.8 Ltr
Sens
85.0 dB

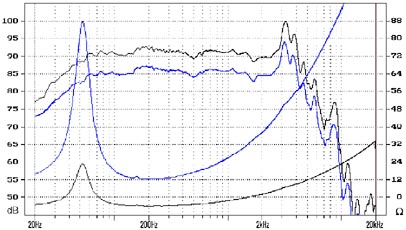

Black=Parallel Blue=Series
GW408D
Pricing
Part No.
Each
Case of 8
GW408D
$20.20
$15.50 each
