Manufacturing and Distributing
Speaker Components Since 1988

12 Inch 3 Way Speaker Kit
(Part #:  KIT12)

                                Kit Contains:
                                        1    12 inch woofer (GW212/8)
                                        1    5.25 inch midrange (GM35)
                                        1    3.5 inch tweeter (GT25)

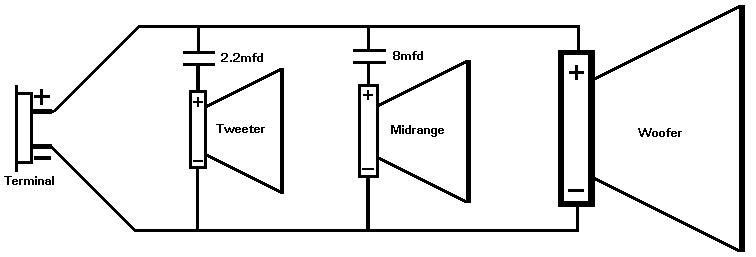

                                        1    2.2 µF tweeter capacitor (EC2)
                                        1    8 µF midrange capacitor (EC8)
                                        1    Screw mount round push terminal (RPT)
                                        1    50 foot spool of 18 gauge (1mm) speaker wire
                                        1    Bag of assembly screws:
                                            8 pieces of 1 inch bugle head screws for mounting woofer
                                            4 pieces of 1/2 inch pan head screws for mounting midrange
                                            4 pieces of 1/2 inch pan head screws for mounting tweeter
                                            4 pieces of 5/8 inch flat head screws for mounting terminal


Optional Grill Kit
(Part #:  KIT12MG)
                                    Kit Contains:
                                            1    12" two piece woofer grill (MG12HD)
                                            1    Midrange grill (RBG5S)
                                            1    Tweeter grill (RBG3S)
                                            1    Bag of assembly screws:
                                                8 pieces of 1¼ inch bugle head screws for mounting woofer grill
                                                4 pieces of 5/8 inch flat head screws for mounting midrange grill
                                                4 pieces of 5/8 inch flat head screws for mounting tweeter grill

525 South Marple Street   Coos Bay, Oregon  97525   T: 541-888-5200   F: 541-888-5280

Form K12  Rev. 10/04
