Technical Characteristics
|
Value
|
| Nominal Impedance |
8 ohms
|
| Resonant Frequency |
920 Hz
|

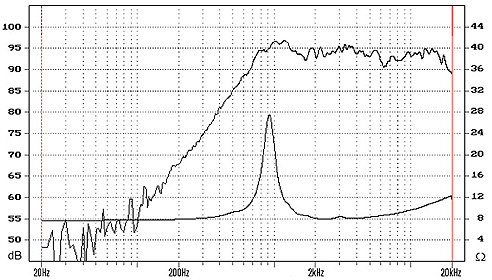

| Frequency Response |
700 - 20,000 Hz
|
| Power Handling |
50 Watts
|
| Sensitivity |
94 dB
|
| Voice Coil Diameter |
1"
|
| Magnet Dimensions |
2.75" x 0.59"
|
| Magnet Weight |
8 oz
|
| Shielded model (GT510S) |
8 oz + 5 oz
|
|
|
Physical Characteristics
|
Inches
|
Milli-
meters
|
| Face Plate Diameter |
4 1/16"
(4.065")
|
103
|
| Diagonal Mounting Hole
Distance
(Center to Center)
|
3 11/16"
(3.662")
|
93
|
| Mounting Depth (GT510) |
1"
(1.005")
|
25.54
|
| Mounting Depth (GT510S) |
1 1/2"
(1.5")
|
38
|
| Minimum Cutout Diameter |
2 3/4"
(2.75")
|
70
|
| Maximum Cutout Diameter |
3 1/4"
(3.25")
|
82.5
|
|
