Titanium Tweeter

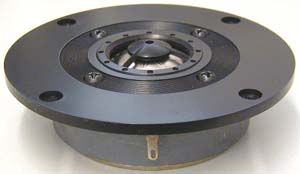

1" Titanium Dome Tweeter
GT324
Specifications
Technical Characteristics
Value
Nominal Impedance
8 ohms

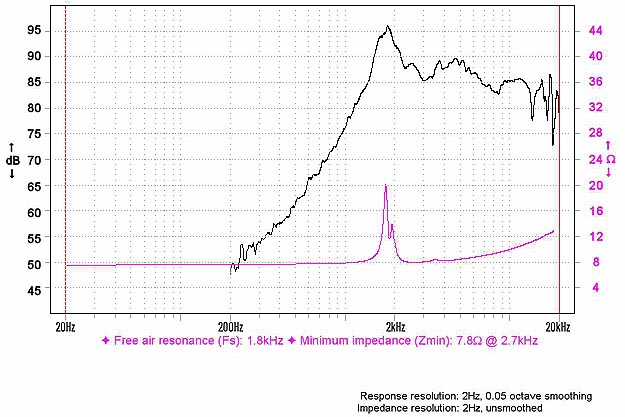

Frequency Response
3500 - 25,000 Hz
Power Handling
60 Watts
Sensitivity
94 dB
Voice Coil Diameter
1"
Magnet Dimensions
2.76" x 0.59"
Magnet Weight
8 oz
Physical Characteristics
Inches
Milli-
meters
Face Plate Diameter
3
15/16
"
(3.925
"
)
100
Diagonal Mounting Hole Distance
(Center to Center)
3
7/16
"
(3.465")
88
Mounting Depth
7/8
"
(0.905")
23
Minimum Cutout Diameter
2 ¾"
(2.775")
71
Maximum Cutout Diameter
3
1/8
"
(3.16")
80
Pricing
Part No.
Each
Case of 40
GT324
$15.20
$7.60 ea
