GW1030
10" Poly Mica Cone Woofer
1.5" Aluminum Voice Coil
Pressed Steel Frame
Butyl Rubber Edge
Vented Pole Piece
30 Ounce Magnet
Bumper Plate
29-7000 Hz
130 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 10" (254mm)
Magnet Diameter = 4¾" (121mm)
Cut-out Diameter = 9¼" (235mm)
Mounting Depth = 3 7/8" (98mm)
Diagonal Mounting Hole Dimension (center to center) = 9 5/8" (245mm)

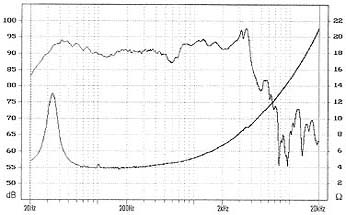

GW1034
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.5 Ohms
Fs
34.3 Hz
Qms
4.386
 Qes
 1.102
Qts
0.881
Vas
81.4 Ltr
Sens
90.1 dB

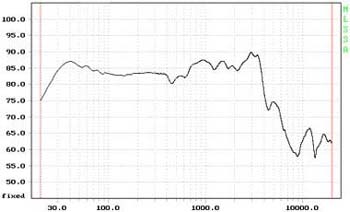

GW1038
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.179 Ohms
Fs
33.7 Hz
Qms
4.434
 Qes
 1.456
Qts
1.096
Vas
90.328 Ltr
Sens
90 dB

GW1034

   GW1038
Pricing
Part No.
Each
Case of 6
GW1034
$38.75
$35.50 each
Pricing
Part No.
Each
Case of 6
GW1038
$38.75
$35.50 each
