GW1240
12" Poly Mica Cone Woofer
2" Aluminum Voice Coil
Pressed Steel Frame
Butyl Rubber Edge
Vented Pole Piece
40 Ounce Magnet
Bumper Plate
18-5000 Hz
150 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 12 1/16" (306mm)
Magnet Diameter = 5 5/8" (143mm)
Cut-out Diameter = 11" (279mm)
Mounting Depth = 4 3/4" (121mm)
Diagonal Mounting Hole Dimension (center to center) = 11 5/8" (295mm)

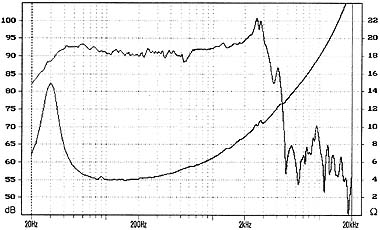

GW1244
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.6 Ohms
Fs
29.7 Hz
Qms
3.301
 Qes
 0.863
Qts
0.684
Vas
119.6 Ltr
Sens
90.9 dB

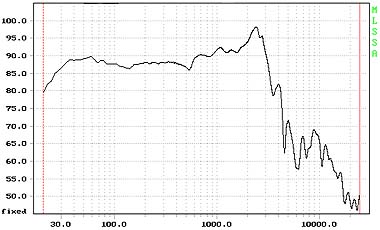

GW1248
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.068 Ohms
Fs
33.46 Hz
Qms
3.112
 Qes
 1.258
Qts
0.896
Vas
96.854 Ltr
Sens
86.97 dB

GW1244

GW1248
Pricing
Part No.
Each
Case of 4
GW1244
$48.00
$43.00 each

Pricing
Part No.
Each
Case of 4
GW1248
$48.00
$43.00 each
