GW1258
12" Musical Instrument/P.A. Woofer
Polymer Laminated Paper Cone
2.5" Aluminum Voice Coil
Pressed Steel Frame
Accordian Surround
Vented Pole Piece
50 Ounce Magnet
Bumper Plate
190 Watts
8 Ohms

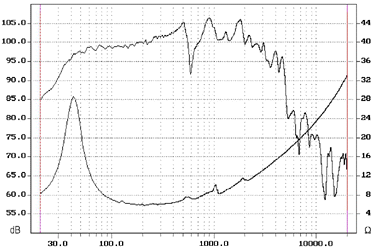

T/S Parameters
Symbol
Value
Z
8 ohms
Re
5.240 Ohms
Fs
41.419 Hz
Qms
3.097
 Qes
 0.563
Qts
0.477
Vas
157.951 Ltr
Sens
96.661 dB
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 12 1/16" (306mm)
Magnet Diameter = 6 1/8" (156mm)
Cut-out Diameter = 11" (279mm)
Mounting Depth = 5" (127mm)
Diagonal Mounting Hole Dimension (center to center) = 11 5/8" (295mm)
Pricing
Part No.
Each
Case of 4
GW1258
$52.03
$47.02 each
