GW12PC
12" Poly Mica Cone Woofer
2" 4-Layer Aluminum Voice Coil
Cast Frame
Butyl Rubber Edge
Vented Pole Piece
50 Ounce Magnet
Bumper Plate
30-4000 Hz
225 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 12¼" (311mm)
Magnet Diameter = 6 1/8" (156mm)
Cut-out Diameter = 11 1/8" (283mm)
Mounting Depth = 4 13/16" (122mm)
Diagonal Mounting Hole Dimension (center to center) = 11 5/8" (295mm)
GW12PC/4
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.7 Ohms
Fs
32.9 Hz
Qms
3.900
 Qes
 0.439
Qts
0.394
Vas
73.2 Ltr
Sens
93.0 dB
GW12PC/8
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.14 Ohms
Fs
48.778 Hz
Qms
3.826
 Qes
 0.560
Qts
0.489
Vas
85.868 Ltr
Sens
89.7 dB

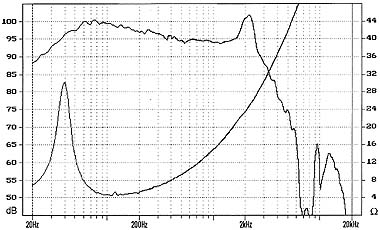

GW12PC/4

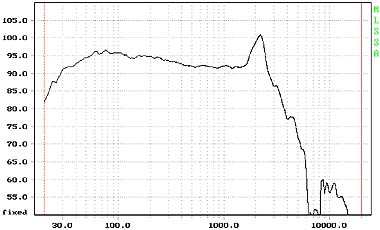

   GW12PC/8
Pricing
Part No.
Each
Case of 4
GW12PC/4
$66.42
$58.90 each
Pricing
Part No.
Each
Case of 4
GW12PC/8
$66.42
$58.90 each
