GW206
6.5" Poly Laminated Paper Cone Woofer
1.5" Aluminum Voice Coil
Pressed Steel Frame
Foam Edge
Vented Pole Piece
20 Ounce Magnet
Bumper Plate
56-6000 Hz
90 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 6 9/16" (167mm)
Magnet Diameter = 3 15/16" (100mm)
Cut-out Diameter = 5 5/8" (143mm)
Mounting Depth = 3" (76mm)
Diagonal Mounting Hole Dimension (center to center) = 6¼" (159mm)

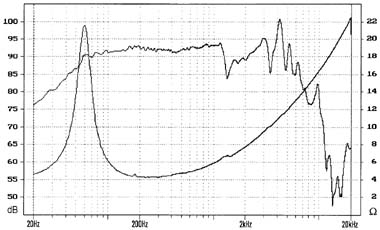

GW206/4
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.7 Ohms
Fs
58.9 Hz
Qms
3.839
 Qes
 0.728
Qts
0.612
Vas
13.2 Ltr
Sens
90.9 dB

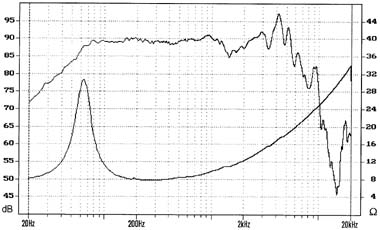

GW206/8
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.1 Ohms
Fs
64.6 Hz
Qms
3.386
 Qes
 0.967
Qts
0.752
Vas
11.1 Ltr
Sens
87.3 dB

GW206/4

GW206/8
Pricing
Part No.
Each
Case of 8
GW206/4
$17.69
$15.50 each
Pricing
Part No.
Each
Case of 8
GW206/8
$17.69
$15.50 each
