GW6020
6.5" Poly Mica Cone Woofer
1.5" Aluminum Voice Coil
Pressed Steel Frame
Butyl Rubber Edge
Vented Pole Piece
20 Ounce Magnet
Bumper Plate
41-4000 Hz
70 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 6 9/16" (167mm)
Magnet Diameter = 3 15/16" (100mm)
Cut-out Diameter = 5¾" (145mm)
Mounting Depth = 3" (76mm)
Diagonal Mounting Hole Dimension (center to center) = 6 3/16" (157mm)
GW6024
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.6 Ohms
Fs
53.7 Hz
Qms
3.048
 Qes
 0.707
Qts
0.574
Vas
12.0 Ltr
Sens
89.5 dB
GW6028
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.314 Ohms
Fs
58.2 Hz
Qms
3.477
 Qes
 1.151
Qts
0.865
Vas
11.68 Ltr
Sens
85.2 dB

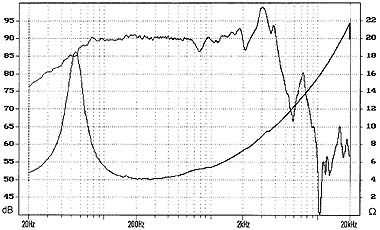

GW6024

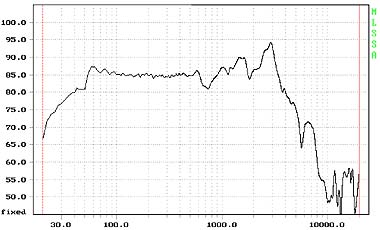

GW6028
Pricing
Part No.
Each
Case of 8
GW6024
$21.70
$19.25 each
Pricing
Part No.
Each
Case of 8
GW6028
$21.70
$19.25 each
