GW8020
8" Poly Mica Cone Woofer
1.5" Aluminum Voice Coil
Pressed Steel Frame
Butyl Rubber Edge
Vented Pole Piece
20 Ounce Magnet
Bumper Plate
35-4000 Hz
100 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter = 8" (203mm)
Magnet Diameter = 3 15/16" (99mm)
Cut-out Diameter = 7 1/4" (184mm)
Mounting Depth = 3 5/16" (84mm)
Diagonal Mounting Hole Dimension (center to center) = 7 5/8" (194mm)
GW8024
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.7 Ohms
Fs
44.1 Hz
Qms
3.420
 Qes
 0.934
Qts
0.734
Vas
30.6 Ltr
Sens
89.6 dB
GW8028
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.151 Ohms
Fs
39.643 Hz
Qms
4.074
 Qes
 1.235
Qts
0.948
Vas
39.4 Ltr
Sens
85.3 dB

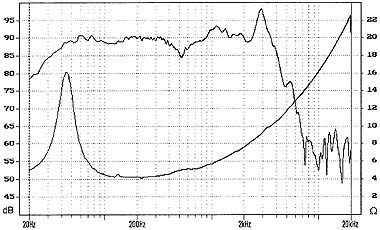

GW8024

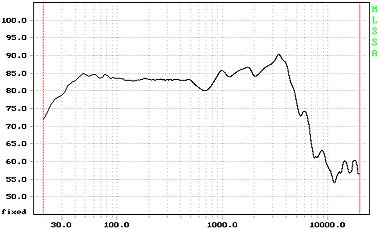

GW8028
Pricing
Part No.
Each
Case of 8
GW8024
$25.58
$21.50 each

Pricing
Part No.
Each
Case of 8
GW8028
$25.58
$21.50 each
