GW8PC
8" Poly Mica Cone Woofer
1.5" 4-Layer Aluminum Voice Coil
Cast Frame
Butyl Rubber Edge
Vented Pole Piece
30 Ounce Magnet
Bumper Plate
43-4000 Hz
165 Watts RMS
Speaker Physical Characteristics
Speaker Frame Outer Diameter =  8¼" (210mm)
Magnet Diameter = 4¾" (121mm)
Cut-out Diameter = 7¼" (184mm)
Mounting Depth = 3 7/8" (98mm)
Diagonal Mounting Hole Dimension (center to center) = 7¾" (197mm)

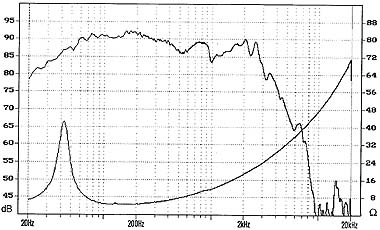

GW8PC/4
T/S Parameters
Symbol
Value
Z
4 ohms
Re
3.7 Ohms
Fs
44.2 Hz
Qms
5.978
 Qes
 0.490
Qts
0.453
Vas
21.3 Ltr
Sens
90.9 dB

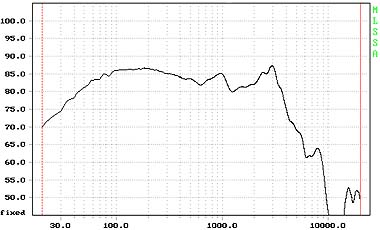

GW8PC/8
T/S Parameters
Symbol
Value
Z
8 ohms
Re
7.239 Ohms
Fs
55.02 Hz
Qms
5.889
 Qes
 0.618
Qts
0.559
Vas
14.54 Ltr
Sens
88.2 dB

GW8PC/4

   GW8PC/8
Pricing
Part No.
Each
Case of 8
GW8PC/4
$40.98
$36.00 each
Pricing
Part No.
Each
Case of 8
GW8PC/8
$40.98
$36.00 each
